G3/8 Pneumatically Actuated (PV-350)
Home > Products > Mechanical & Air Pilot Valve > Air Pilot Valve > G3/8 Pneumatically Actuated (PV-350)

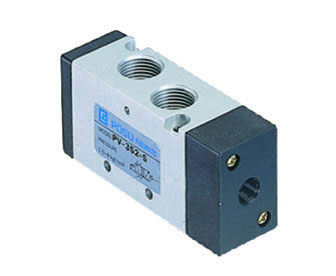

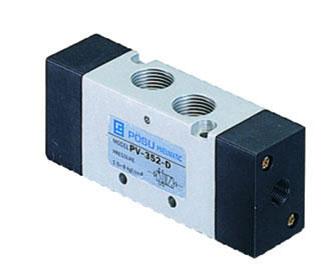

G3/8 Pneumatically Actuated (PV-350)
‧G3/8 Pneumatically Actuated (PV-350)


G3/8 Pneumatically Actuated (PV-350)
G3/8 Pneumatically Actuated (PV-350)
G3/8 Pneumatically Actuated (PV-350)

Product Specifications
Model
PV-352-S
PV-352-D PV-353-D
Port thread size (Rc) 3/8"
Port amount 5/2 5/3
Used fluid Air
Pressure range (kgf/cm²) 1.5 ~ 8 2 ~ 7
Effective section area (mm²) 30 18
Ambient temperature (°C) 0 ~ 60
Weight (g) 220 380
