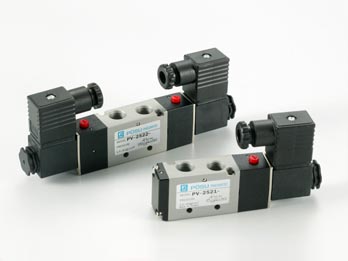

PV-250 Electrically Operated (5 Way)
‧PV-250 Electrically Operated (5 Way)


PV-250 Electrically Operated (5 Way)

Product Specifications
Model PV-2521 PV-2522 PV-2532.42
Port thread size (Rc) 1/4"
Port amount 5/2 5/3
Used fluid Air
Pressure range (kgf/cm²) 1.5 ~ 8 2 ~ 7
Effective section area (mm²) 18 12
Ambient temperature (°C) 0 ~ 60
Allowance voltage range AC110V HZ/AC220V HZ/ DC24V (± 10%)
Power consumption AC = 8VA / DC = 5W
Insulation grade (°C) Class F
Weight (g) 210 310 420


Pneumatic and spring return, manually control in first priority.
European imported coil wire with low electricity consumption.
