Compact Pneumatic Cylinders - CJ Series
Home > Products > Compact Cylinder > Compact Pneumatic Cylinders - CJ Series

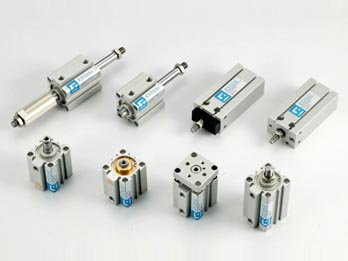

Compact Pneumatic Cylinders - CJ Series
‧Compact Pneumatic Cylinders - CJ Series


Compact Pneumatic Cylinders - CJ Series
Compact Pneumatic Cylinders - CJ Series
Compact Pneumatic Cylinders - CJ Series
Compact Pneumatic Cylinders - CJ Series

Product Specifications

Double acting cylinders

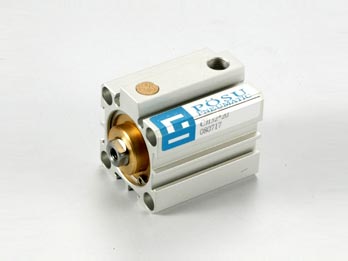

CJI  Single Acting-Normally Retracted Piston Rod Type
CJIR  Single Acting-Normally Retracted Piston Rod Type
  ( piston with magnet )

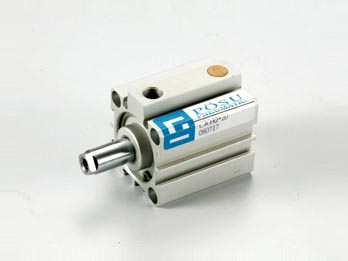

CJO  Single Acting-Normally Extended Piston Rod Type
CJOR  Single Acting-Normally Extended Piston Rod Type
  ( piston with magnet )

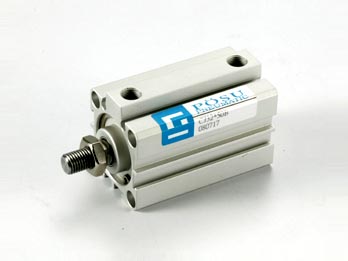

CJ  Double Acting-Single end Rod Type
CJR  Double Acting-Single end Rod Type
  ( piston with magnet )
CJD  Double Acting-Double end Rod Type
CJDR  Double Acting-Double end Rod Type
  ( piston with magnet )
CJN  Double Acting-Adjustable Foward Stroke Type
CJNR  Double Acting-Adjustable Foward Stroke Type
  ( piston with magnet )

Product Character
Bore size of cylinder (mm) φ12 φ16 φ20 φ25 φ32 φ40 φ50 φ63 φ80 φ100
Standard stroke (mm)  10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 75, 85, 100, 125, 150
The range of stroke (mm) 30 150
Power fluid  Filtered air with or without lubrication
The range of pressure (kgf / cm²) 2 ~ 7 1.5 ~ 7 1 ~ 7
The range of temperature (°C)  -10 ~ 60
