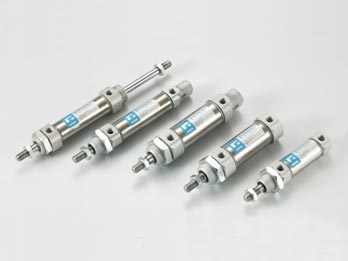

Miniature Stainless Steel Tube Air Cylinders - DI Series
‧Miniature Stainless Steel Tube Air Cylinders - DI Series


Miniature Stainless Steel Tube Air Cylinders - DI Series

Product Specifications
Bore size of cylinder (mm) φ12 φ16 φ20 φ25 φ32 φ40
Standard stroke (mm) 15, 25, 50, 75, 100, 125, 150, 200, 250, 300, 400, 500
Used fluid Filtered air with or without lubrication
Material of cylinder barrel SUS 304 Stainless steel tube
The range of pressure (kgf/cm²) 1 ~ 9.9
The range of temperature (°C) -10 ~ 60

Product Character

Double-Single acting cylinders

DIC...
DIA...
 Double Acting - Single end Rod Type
DID...  Double Acting - Double end Rod Type
DID...A
DID...B
 Adjustable Forward Stroke Cylinder
  -Adjustable Stroke (A: 25mm B: 50mm)
SRIC...
SRIA...
 Single Acting With Spring Return
  -Single end Rod Type
SHIC...
SHIA...
 Single Acting With Spring Extrude
  -Single end Rod Type



  • DI Series cylinders according to ISO 6432 (Bore size φ12 ~ φ25 )
