Product Specifications |
| Bore size of cylinder (mm) |
φ10 |
φ16 |
φ20 |
φ25 |
φ32 |
| Standard stroke (mm) |
25, 50, 75, 100, 125, 150, 175, 200, 250 |
| The range of stroke (mm) |
Max 150 |
Max 250 |
| Used fluid |
Filtered air with or without lubrication |
| Pressure range (kgf/cm²) |
1.5 ~ 9 |
1 ~ 9 |
| Maximum pressure (kgf/cm²) |
9.5 |
| Ambient temperature (°C) |
-10 ~ 60 |
| Adjustable stroke (mm) |
-10 ~ 0 |
| Maximum load (kgf) |
PTU |
0.5 |
1.5 |
2.0 |
2.5 |
3.5 |
| PTM |
1 |
3 |
4 |
5 |
6 |
| Port size |
M5 x 0.8 |
Rc 1/8" |
| Sensing unit |
Magnet |
|
|
Product Character |
| PTU... |

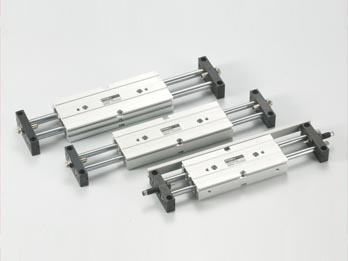

Double Acting - Twin Rods -
End Blocks Movable Type |
| PTM... |
Double Acting - Twin Rods -
Middle Blocks Movable Type |
Twin piston rod provides double action force.
Non-turnable twin piston rod design makes the positioning more precisely.
The body is under the surface hardness anodic treatment.
Adopting imported O rings and packings. With built-in magnet for all model. |
|
