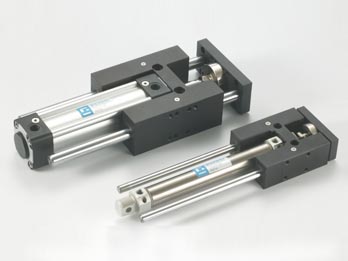

Guide Cylinders - GD Series
‧Guide Cylinders - GD Series


Guide Cylinders - GD Series

Product Specifications
Bore size of cylinder (mm) φ20, φ25, φ32, φ40, φ50, φ63
The range of stroke (mm)  Stroke by request
Power fluid Filtered air with or without lubrication
The range of pressure (kgf/cm²) 2 ~ 7
The range of temperature (°C) -10 ~ 60

Product Character
GDB  Heavy Duty (Bush) Type
GDU  Heavy Duty (Linear Bearing) Type



  • The guiding units can be assembled to cylinders in conformity ISO 6431/6432 standard.
  • Antirotation is guaranteed by two steel guide stems, which moment is supported by linear bearings in GDU series and brass bushed in GDB series
