Rotary Actuators - RAL Series
‧Rotary Actuators - RAL Series


Rotary Actuators - RAL Series
Rotary Actuators - RAL Series

Product Specifications
Bore size of cylinder (mm) φ16 φ20 φ25 φ30
Standard rotation 90 ± 5° , 180 ± 5°
Rotating shaft dia. (mm) φ6 φ8 φ10 φ12
Initial position of slot (mm) See dimensional feature
Power fluid Filtered air with or without lubrication
The range of pressure (kgf/cm²) 1.3 ~ 7
Ambient temperature (°C) -10 ~ 60
Max. allowable axial thrust (kg) 0.013 0.022 0.041 0.060

Product Character

Double acting rotary cylinders

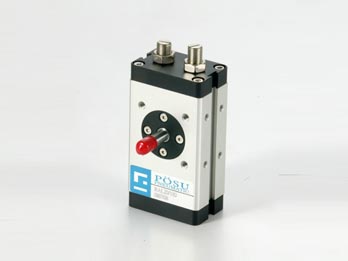

RAL  Male Pivot Gear (Standard Type)

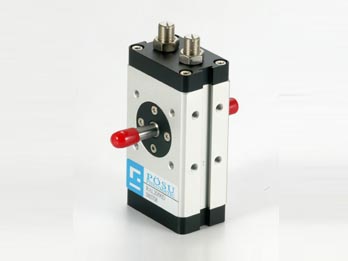

RAL-D  Male Pivot Gear (Double end Rod Type)



  • The body is manufactured in anodized aluminum alloy, and has been designed looking at the harmonious aesthetic development.
  • Pinion and rack produced from carbon steel reduces backlash within the mechanism.
  • Rotation adjustment screw.
