Product Specifications |
| Bore size of cylinder (mm) |
φ6 |
φ10 |
φ16 |
| Single acting stroke (mm) |
15, 30, 45, 60 |
| Double acting stroke (mm) |
15, 30, 45, 60, 75, 100, 125, 150, 175, 200 |
| Power fluid |
Filtered air with or without lubrication |
| Material of cylinder barrel |
Stainless steel |
| Max. operation pressure (kgf/cm²) |
7 |
| Min. operation pressure (kgf/cm²) |
1.2 |
0.6 |
| The range of temperature (°C) |
-10 ~ 60 |
|
|
Product Character |
Double-Single acting cylinders
CDAI,
CDUI,
CDRI |
Single Acting - Normally Retracted Piston Rod Type
(piston with magnet) |
CDAO,
CDUO,
CDRO |
Single Acting - Normally Retracted Piston Rod Type
(piston with magnet) |

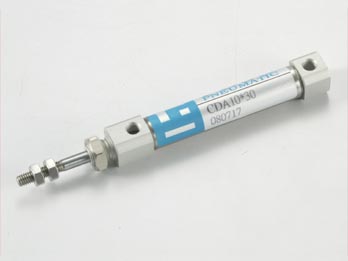

| CDA |
Double Acting - Single end Rod Type
(piston with magnet) |

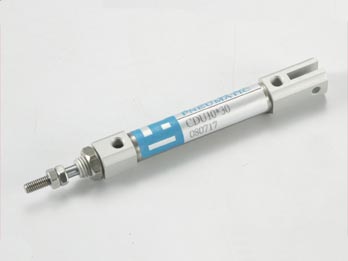

| CDU |
Double Acting - Single end Rod and Double Clevis
(piston with magnet) |

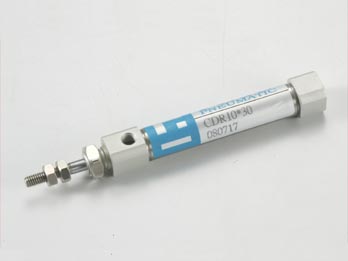

| CDR |
Double Acting - Single end Rod and Port Location on Head cover in Line Type
(piston with magnet) |

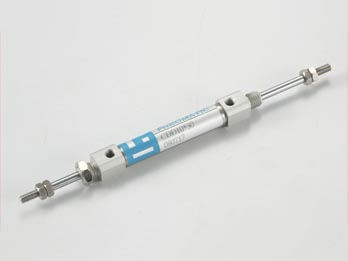

| CDD |
Double Acting - Double end Rod Type
(piston with magnet) |
High quality-long service life: Hard anodized aluminum cylinder tubes resist corrosion and abrasion.
Cylinder mountings: Arailable with amountings for fixed or flexible installation.
All cylindeers with magnet: Piston with magnet is stanard accessory in the CD series. |
|
