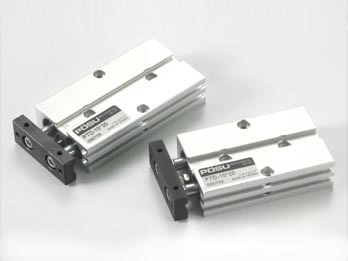

Twin Rod Air Cylinders - PTD Series
Home > Products > Guide Cylinder > Twin Rod Air Cylinders - PTD Series

‧Twin Rod Air Cylinders - PTD Series



Product Specifications
Bore size of cylinder (mm) φ10 φ16 φ20 φ25 φ32
Standard stroke (mm) 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250
The range of stroke (mm) Max 100 Max 200 Max 250
Used fluid  Filtered air with or without lubrication
Pressure range (kgf/cm²) 1 ~ 8.5
Maximum pressure (kgf/cm²) 9.5
Ambient temperature (°C) -10 ~ 60
Adjustable stroke (mm) -5 ~ 0
Port size M5 x 0.8 Rc 1/8"
Sensing unit Magnet

Product Character

Double acting cylinders

PTD...  Double Acting - Twin Rod
  -Single end Rod Type



  • Twin piston rod provides double action force.
  • Non-turnable twin piston rod design makes the positioning more precisely.
  • The body is under the surface hardness anodic treatment.
  • Adopting imported O rings and packings. With built-in magnet for all model.
