Guided Rods Air Cylinders - PX Series
Home > Products > Guide Cylinder > Guided Rods Air Cylinders - PX Series

Guided Rods Air Cylinders - PX Series

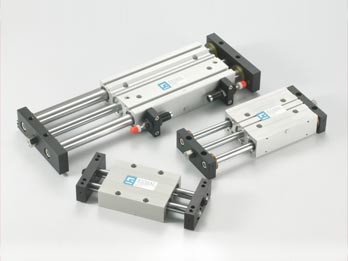

‧Guided Rods Air Cylinders - PX Series


Guided Rods Air Cylinders - PX Series

Product Specifications
Bore size of cylinder (mm) φ16 φ20 φ25 φ32 φ40 φ50 φ63
Standard stroke (mm) 50, 75, 100, 125, 150, 175, 200, 250
The range of stroke (mm) Max 150 Max 250
Used fluid  Filtered air with or without lubrication
Pressure range (kgf/cm²) 1.5 ~ 7
Maximum pressure (kgf/cm²) 9.5
Ambient temperature (°C) -10 ~ 60
Adjustable stroke (mm) -10 ~ 0
Speed rang (mm/s) 30 ~ 500 30 ~ 500
Port size M5 x 0.8 Rc 1/8" Rc 1/4"

Product Character

Double acting cylinders

PXB...  Double Acting - Twin Guided Roads - Middle Block Movable Type
  (with teflon bushing)
PXU...  Double Acting - Twin Guided Roads - Middle Block Movable Type
  (with linear bearing bushing)



  • Can be used for horizontal or vertical motion.
  • Compact design, easy for assembly and mounting, high interchangability.
  • The body is under the surface hardness anodic treatment.
  • Adopting imported O rings and packings. With built-in magnet for all model.
