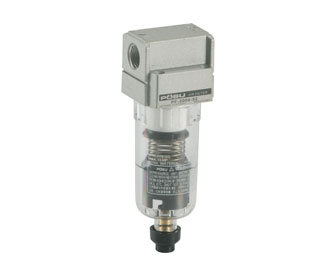

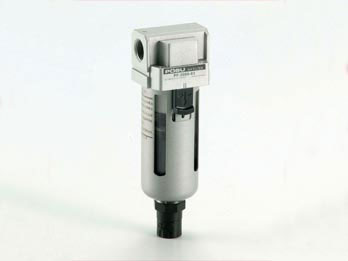

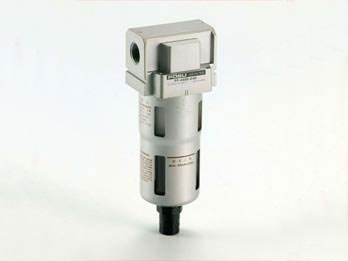

Mist Separator
‧Mist Separator


Mist Separator
Mist Separator
Mist Separator

Product Specifications
Type PFM2000 PFM3000 PFM4000
Port size (G) 1/8", 1/4" 1/4", 3/8" 1/2, 3/4"
Fluid Air
Proof pressure (kgf/cm² ) 15
Max. operating pressure (kgf/cm² ) 10.2
Rate flow (l/min (ANR)) 300 700 1800
Ambient and media temperature ( °C ) -5 ~ 60 With no freezing
Nominal filtration rating ( µm) PF:5 /PFM:1/ (95% filtered partide size)
Outlet side oil mist concentration (mg/m³) Max 1.0 (ANR)(=0.8ppm)
Bowl capacity (cm³) 8 20 45
Bowl material Polycarbonate
Weight (kg) 0.15 0.3 0.6



Name / TypePart No .
Referance Page
PRF2000PRF3000PRF4000
PR/PW (Blacket) B240 B423 B540 A-35
Auto drain N.C (Float type) ※ AD53 AD53
 (Dif ferential pressure type)
AD62

※ Mini operating: N.C-1.5 kgf/cm²


Product Description

We are professional manufacturer of air filter, regulator, and lubricator. We can manage to manufacture filter regulator lubricator products to achieve customers' demands and requests. Welcome to browse the details with product information of filter regulator lubricator combination unit and we also provide related products as following below:
