Product Specifications |

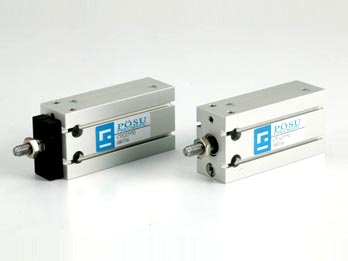

Double acting cylinders
| CUA |
Double Acting-Single end Rod Type |
| CUAR |
Double Acting-Single end Rod Type
(piston with magnet) |
| CUQ |
Double Acting-Double NonRotating Rod Type |
| CUQR |
Double Acting-Double NonRotating Rod Type
(piston with magnet) |
CU series magnetic piston (optional).
Space saving. |
|
Product Character |
| Bore size of cylinder (mm) |
φ6 |
φ10 |
φ16 |
φ20 |
φ25 |
φ32 |
| Standard stroke (mm) |
5, 10, 15, 20, 25, 30 |
5, 10, 15, 20, 25, 30, 40, 50 |
| The range of stroke (mm) |
30 |
50 |
| Power fluid |
Filtered air with or without lubrication |
| The range of pressure (kgf/cm²) |
3 ~ 7 |
1.5 ~ 7 |
1 ~ 7 |
| The range of temperature (°C) |
-10 ~ 60 |
|
|
